SKU: 18494

Von Duprin 22EO 3 SP313 Rim Exit Device 36″ Dark Bronze Anodized Aluminum

  • Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
  • Device lengths: 3′ (914 mm), 4′ (1219 mm)
  • Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
  • Center case dimensions: 4 1/4″ (108 mm) x 1 3/8″ (41 mm) x 2 3/8″ (60 mm)
  • Mechanism case dimensions: 2″ (51 mm) x 3 3/4″ (95 mm)
  • Projection push bar: Push bar neutral – 3 3/4″ (95 mm) push bar depressed – 3″ (76 mm)
  • Latch bolt: Deadlocking, 3 /4″ (19 mm) throw
  • Fasteners & sex bolts (SNB): Includes 1 3/4″ (44 mm) and 2 1/4″ (57 mm) wood & metal doors optional SNB available for device
  • Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
  • Mechanical options: GBK glass bead kit AX accessible device
  • Dogging feature: Hex key dogging standard
  • Dogging options: LD less dogging
  • Strikes: 299 – Dull black

$414.99

1 in stock

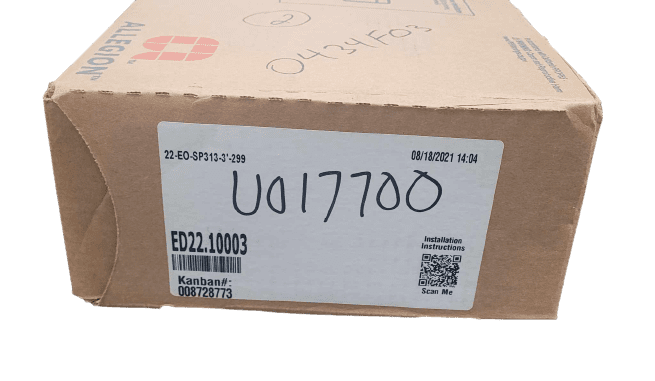

Von Duprin 22EO 3 SP313 Rim Exit Device 36" Dark Bronze Anodized Aluminum

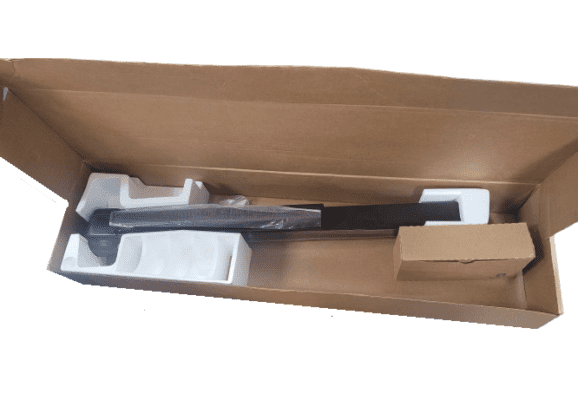

Von Duprin 22EO 3 SP313 Rim Exit Device 36" Dark Bronze Anodized Aluminum - Image 2
