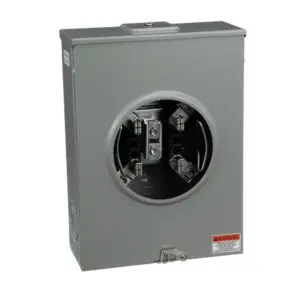

The Square D by Schneider Electric 10˚ Configurations for A size hub provision in the top end wall and a 2-1/2 in. maximum knockout in the bottom end-wall. This electrical meter box uses an aluminum bus, is single phase, 3-wires and features a NEMA 3R rated enclosure for outdoor use. This unit is ANSI certified and UL listed for use as service entrance equipment with a maximum load of 60˚ Compatible with #2/0˚ Connectors Maximum Line and Load Conductor and neutral.
- 200 amp meter socket
- Accommodates an overhead or underground feed
- Suitable for use as service entrance equipment
- Ring-less design with no bypass
- 600 VAC max
- Single phase, 3-wire design
- NEMA type 3R enclosure for outdoor use
- MEG approved, residential service, single position
- #250 mcm connectors maximum line and load conductor
- Works with type A hubs and ACP closing plates
- UL listed and ANSI certified
- Made in the USA
- Check with your local utility to ensure this product meets their requirements
Dimensions
Details
| Weight | 10 lbs |
|---|---|
| Dimensions | 15 × 12 × 7 in |
