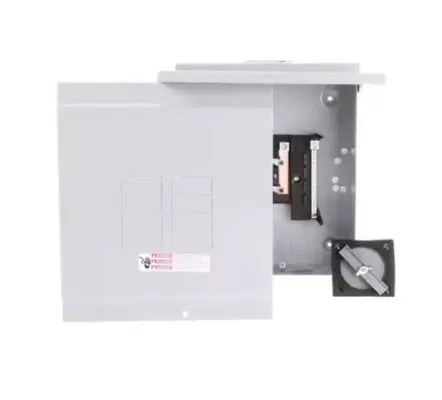

The Siemens EQ 125 Amp 8-Space 16-Circuit Main Lug Outdoor Load Center is NEMA 3R rated for outdoor use and has a hinged door that can be removed by backing-out 1 screw. The load center features a 1-piece copper buss bar that offers excellent conductivity and is ideal for use where the environment can become severe, such as on farms and near coastal areas. Suitable for use as service equipment when a main breaker (125 Amp maximum) is back-fed in a branch position and used with main breaker retainer clip No.
- For use as a main lug load center
- Suitable for use as service entrance equipment when a main breaker is installed
- NEMA 3R rated for outdoor use
- G90 hot-dipped, galvanized-carbon-steel enclosure helps provide corrosion protection and has a hinged door that can be removed by backing out 1 screw
- Powder coating of polyester paint using electrostatic process enhances corrosion protection and gives a great-looking finish, free of drips and runs
- 1-piece copper buss bar is designed for use only with circuit breakers (not included) and offers excellent conductivity
- Single phase
- 3-wire
- 120/240 VAC
- 100,000 AIR
- Insta-wire for quick conductor installation
- Ideal for use where the environment can become severe, such as on farms and near coastal areas
- ANSI certified and UL listed
- Convertible from a main lug load center to a main breaker load center
- Interior offers removal in seconds
- Combination trim box in 1-package
- Positive load-side circuit-breaker hook rails
- Uses type HS hubs (not included)
| Weight | 13 lbs |
|---|---|
| Dimensions | 16 × 12 × 6 in |
| Brand | Siemens |
| MPN | W0816ML1125CU |
| UPC |
