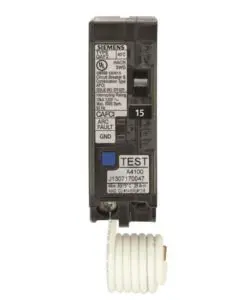

This Siemens 15 Amp 1 in. Single Pole Combination AFCI Circuit Breaker trips to the center position and features LED trip indicators. This combination breaker is intended for use as a circuit breaker and AFCI device. This breaker is UL listed.
- Plug-in or bolt-on branch circuit breakers for Siemens single phase load centers or panel boards
- LED trip indicators for clear identification
- Available with interrupting rating of 10kA, 22kA or 65kA
- 1/4 in. more wiring bend space than previous design
- Both lugs at the same angle for easier wiring
- #14 – #8 AWG copper, #12 – #8 AWG aluminum wire range
- 25 lb./in. torque rating
- UL listed
Dimensions
Product Depth (in.): 1.5 in
Product Height (in.): 6.5 in
Product Width (in.): 6.75 in
Details
Breaker Type: Single Pole
Electrical Product Type: Breaker
Interruption Type: CAFCI
Maximum Amperage (amps): 15
Mounting Type: Plug-On
Number of Poles: 1
Pack Size: 1
Power Distribution Features: No Additional Features
Product Weight (lb.): 0.5 lb
Voltage (volts): 120
| Weight | 1.00 lbs |
|---|---|
| Dimensions | 8 × 8 × 2 in |
