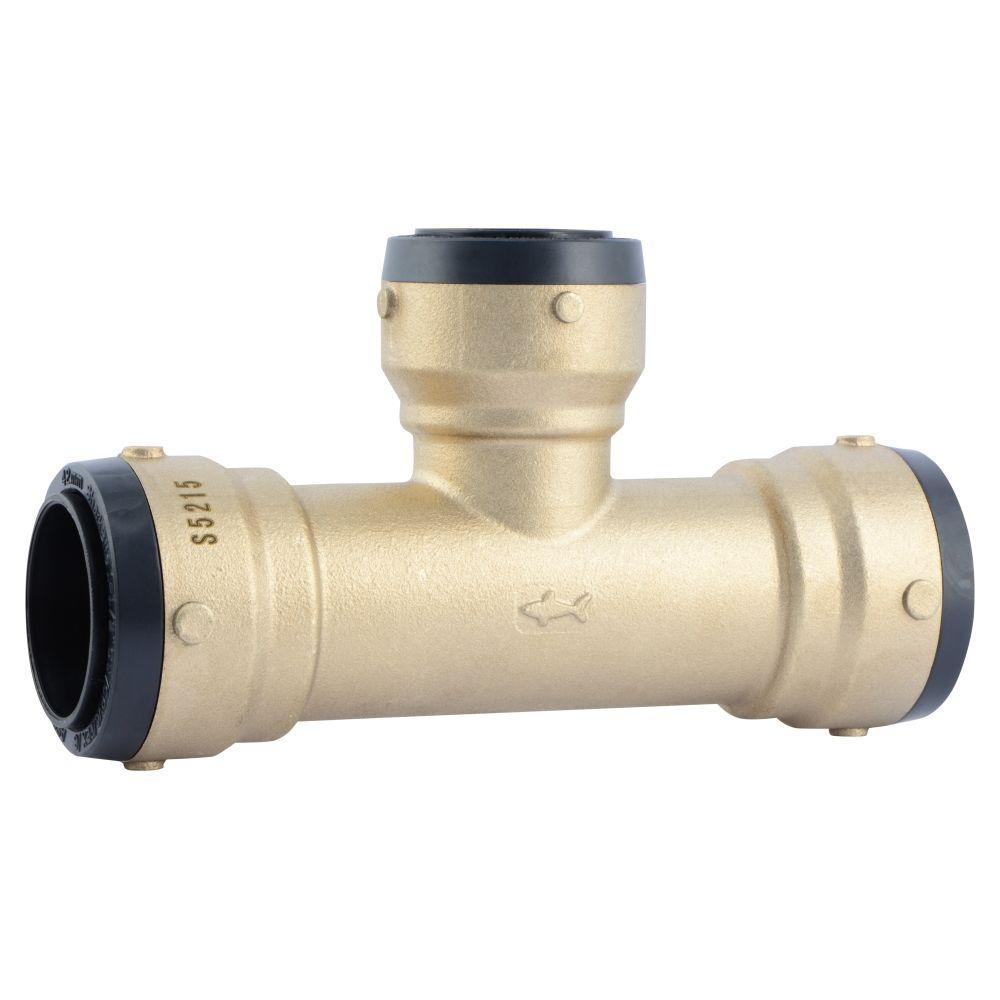

The SharkBite 1-1/2 in. x 1-1/2 in. x 1-1/4 in. Push-to-Connect Reducer Tee is the easiest way to join copper, PEX, PE-RT, CPVC pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite Fittings are certified for potable water supply and hydronic heating applications.
- Lead free DZR brass construction for durability and reliability
- Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
- Innovative push-to-connect design makes for quick and easy installation
- Push-to-connect fittings require no solder, glue, unions or tools
- Fitting can be rotated on pipe after installation making it easier to work in tight spaces
- Designed for potable water distribution as well as hydronic heating applications
- Corrosion resistant to improve longevity
- Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
- Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
- Meets all UPC, IPC and cUPC requirements
- Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
- Rated to 200°F and 200 psi
Specifications
Dimensions
Product Depth (in.): 7.39
Product Height (in.): 1.5
Product Length (in.): 7.39
Product Width (in.): 1.5
Details
Connectivity: Push to Connect
Fitting Diameter (in.): 1.5
Fitting or Connector Type: Tee or Wye
Material: Brass
Maximum working pressure (psi): 200
Pipe or Fitting Product Type: Fittings & Connectors
Product Weight (lb.): 2.22lb
Push to connect: Yes
Push-to-Fit: Yes
