Technical Specs

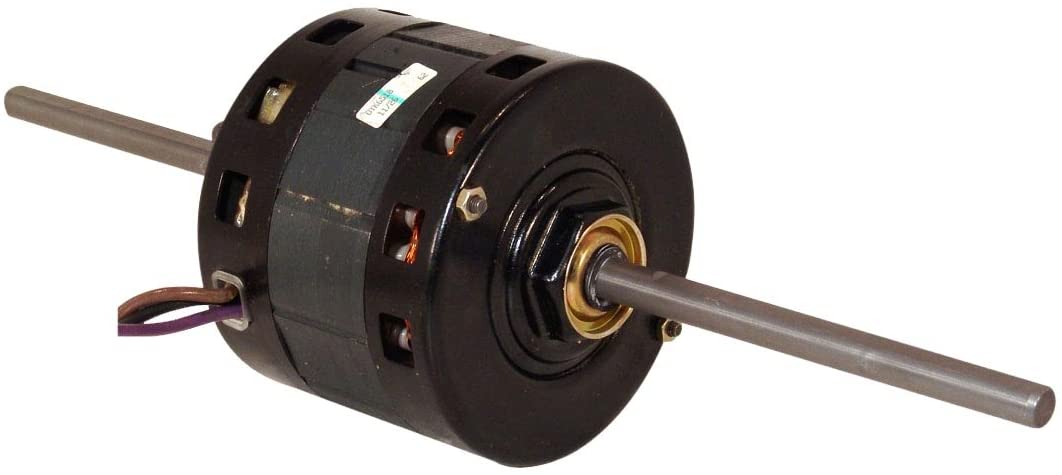

- Item OEM Replacement Motor
- Motor Application OEM Replacement
- Phase Single
- Motor Design Permanent Split Capacitor
- HP 1/5
- Nameplate RPM 1,075
- No. of Speeds 1
- Voltage 208-230V AC
- Full Load Amps 1.40
- Frame 42Y
- OEM Replacement Brand York
- Replacement For 2091
- Usable @ 208V Yes
- Usable @ 200V No
- Hz 60
- Motor Service Factor 1
- Motor Thermal Protection Auto
- Ins. Class B
- Max. Ambient Temp. 40 Degrees C
- Motor Shaft Rotation CWLE
- Motor Enclosure Design Open Air-Over
- Motor Mounting Type Band
- Motor Mounting Position Horizontal
- Motor Frame Material Steel
- Number of Shafts 2
- Shaft Dia. 1/2 in
- Shaft Length 6 1/4 in
- Motor Shaft Design Flat
- Motor Bearings Sleeve
- Overall Length 16 1/2 in
- Length Less Shaft 3 11/16 in
- Body Dia. 5 in
- Weight 12 lb
- Standards CSA Certified, UL Recognized
- Capacitor Required Yes
| Weight | 7 lbs |
|---|---|
| Dimensions | 15 × 10 × 7 in |
| GTIN | 0663001039556 |
