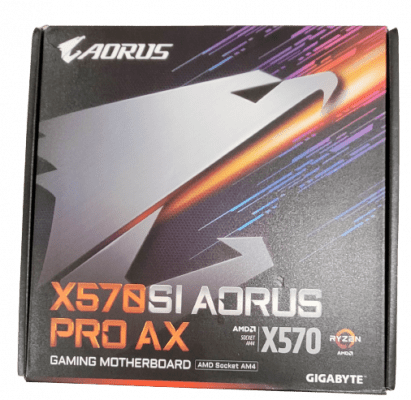

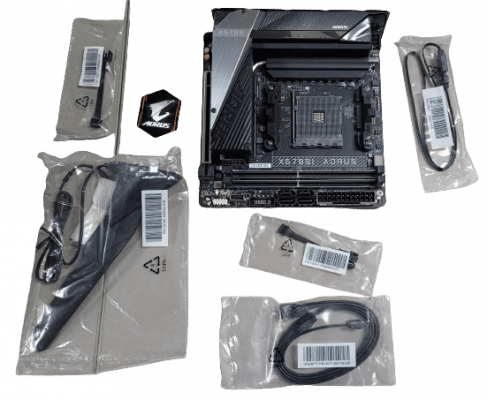

Gigabyte X570S motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system up to fast and powerful, even under heavy workloads. To unleash the full potential of the latest AMD Ryzen 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and Gigabyte R&D design capability, X570SI Aorus Pro AX is a true beast among motherboards. X570SI Aorus Pro AX uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full loading application and gaming. A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570SI Aorus Pro AX provides all next generation network, storage, and WIFI connectivity to keep you up to speed. X570SI Aorus Pro AX features RGB Fusion 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC. Gigabyte is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Gigabyte Motherboard and reinforce every slot to make each of them solid and durable.
- CPU Socket Type: AM4
- CPU Type: Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors
- Chipset: AMD X570
- Number of Memory Slots: 2 x 288pin
- Maximum Memory Supported 64GB
- Channel Supported: Dual Channel
- ECC Supported: ECC memory (ECC mode) support varies by CPU
- Buffer Supported: Un-buffered
- PCI Express 4.0 x16: 1 x PCI Express 4.0 x16
- Sata 6Gb/s: 4 x SATA 6Gb/s
- Sata Raid: 0/1/10
- Onboard Video Chipset: Supported only by CPU with integrated graphic
- Audio Chipset: Realtek ALC1220-VB
- Audio Channels: 7.1 Channels
- LAN Chipset: Intel 2.5GbE LAN chip
- Max LAN Speed: 10/100/1000/2500Mbps
- Wireless LAN: AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.1)WIFI a,b,g,n,ac,ax
- Bluetooth: Bluetooth 5.2
- Form Factor: Mini ITX
- LED Lighting: RGB
- Size: 6.7″ x 6.7″
- Power Pin: 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector
