SKU: 13797

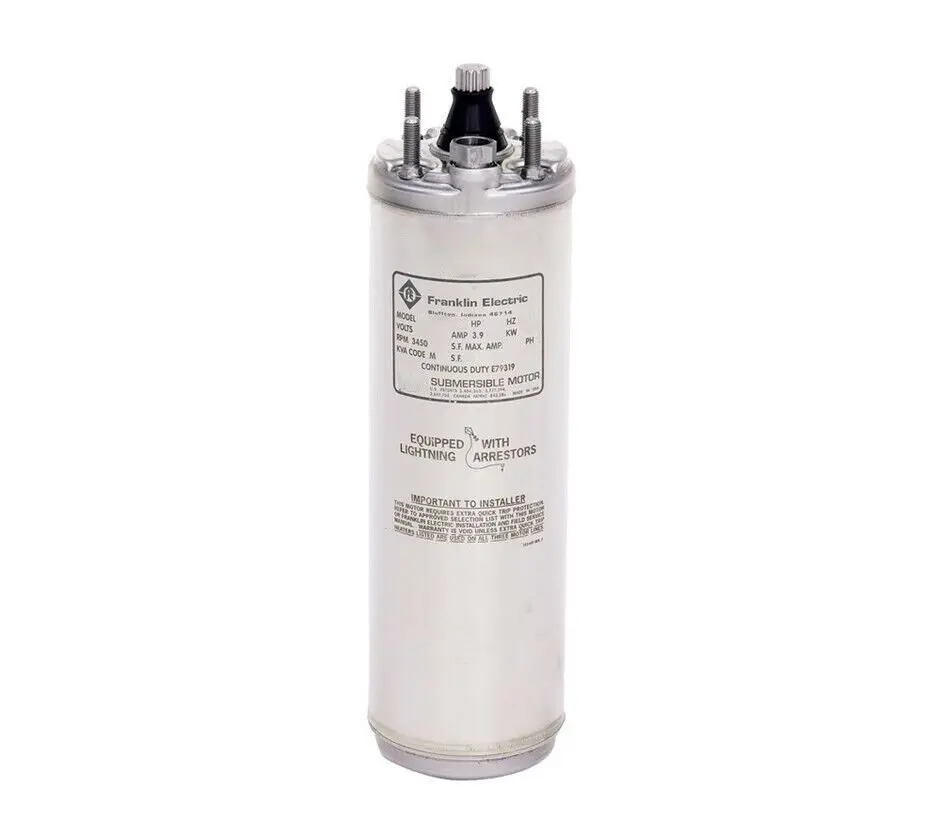

Franklin 4″ Submersible 3 Wire 1PH Motor 3/4 HP 230V 2145079004GS

Item: Deep Well Submersible Pump Motor Shell Material: Corrosion Resistant Stainless Steel
Shaft Material: Splined Stainless Steel Overload Relay Required: No
Motor Application: Pump Lead Length: 48 in
Nameplate RPM: 3,450 Voltage: 115V AC
HP: 1/3 Motor Service Factor: 1.75
Motor Thermal Protection: Auto Height: 8 3/4 in
Phase: Single Number of Wires: 3
Motor Enclosure Design: Totally Enclosed Nonventilated Full Load Amps: 8.0
Stator Type: Hermetically Sealed Dia.: 4 in
Thrust Rating: 300 lb Hz: 60
Starter Required: No Max. Ambient Temp.: 86 Degrees F
Diaphragm Type: Pressure Equalizing Max. SF Amps: 9.2
Motor Sub Application: Well Submersible Pump Motor Shaft Rotation: CCWSE
RPM Range: 3,001-3,600 Motor Design: Capacitor-Start
Standards: ANSI/NSF 61 Certified, CSA Certified, Industry Standard NEMA Mounting Dimensions, UL 778 Recognized Overload Relay Max. Amp Setting: Not Applicable
Motor Bearings: Thrust Usable @ 208V: No
No. of Speeds: 1 Length Less Shaft: 8 3/4 in
Weight: 17 lb Usable @ 200V: No
Body Dia.: 4 in Duty Cycle: Continuous
Bolt Circle Dia.: 2 3/8 in Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Bearing Protection: Water Slingers Country of Origin (subject to change): Mexico

$219.99

Out of stock
