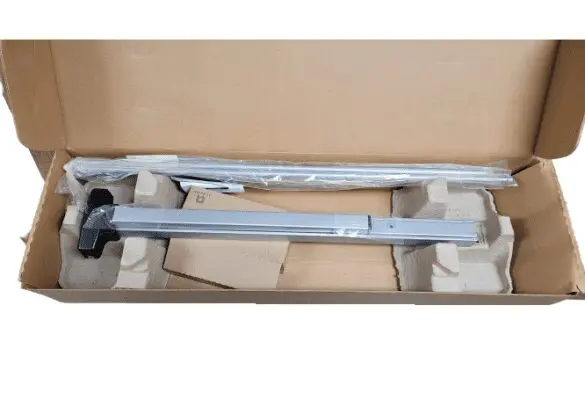

FALCON EXITS Surface Vertical Rod Exit Device // Grade-1 // 19-V-EO-SP28-3FT-LHR

Surface Vertical Rod, Exit Device, Medium Duty Performance, Grade 1, Aluminum Finish, Door Width 30 in to 36 in, Series 19, Door Height 84 in, Fits Stile Width 1 3/4 in, For Door Thickness 1 3/4 in, Door Handing Non-Handed, ADA Compliant, No, Standards ANSI 156.3 Grade 1, Type Exit

• Panic exit hardware: Manufactured to the same standards as the 19 Rim, the 19–V exit device complies with most exit door requirements, and is fully reversible and surface applied. This device is regularly furnished with deadlocking top latch with latch retention and square bolt at bottom. The “EO” (exit only) device is ready to accept any trim functionSpecifications:
• Hand: Field reversible.
• Functions: All functions built into “EO” device. All 19 Series trim works with rim or vertical devices.
• Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313; stainless steel US-32D.
• Strikes: 3788 strike is surface applied standard, 2130 strike is mortised into floor.
• Angle bracket: Use 4215 angle bracket in flush transom or rabbeted installations. Allows use of standard 3788 strike.
• Latchbolt: Top stainless steel 3/4″ throw. Bottom square bolt 1/2″ throw.
• Deadlocking latchbolt: Standard.
• Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder dogging: Specify “CD” prefix. Use 1 1/8″ long mortise cylinder with standard “A” cam.
• Stock sizes: 3′ for doors from 2’5″ up to 3′. 4′ for doors from 3′ up to 4′.
• Doors: 1 3/4″ thick, wood or metal. Specify thickness if other than 1 3/4″.
• Narrow stile doors: To 1 3/4″ N.S. aluminum. With control trim– 2 1/4″ min. stile.
• Projection: 2 1/2″ max., 1 7/8″ dogged.
• Fasteners: All mounting screws are concealed. Furnished with sheet metal screws. Machine screws available, specify AMS.
• ANSI: Certified ANSI A156.3 2001 grade 1 standards
