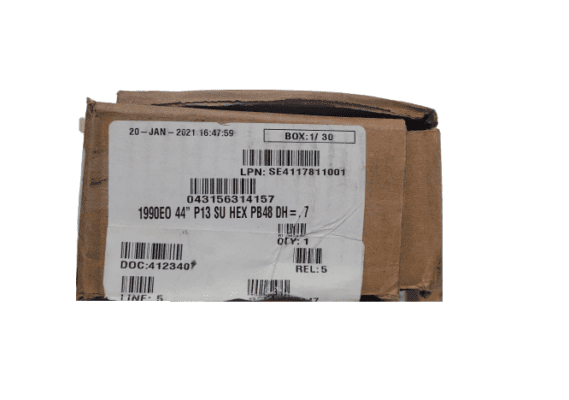

Falcon 1990EO 44″ P13 SU HEX PB48 Concealed Vertical Device in Dark Bronze
The classic look of 1990 has a long history of reliable performance. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation.
Falcon 1990 EO Concealed Vertical Device (Dor-o-matic)
Specifications:
Hand: Field reversible, non handed
Strikes: PB48 top.
Latches: Hex bottom latch (standard)
Dogging feature: Hex dogging standard.
Sizes: Field adjustable width, 41″ crossbar standard extra length cross bar available. FOR DOORS UP TO 44″.
Doors: 1 3 ⁄4″ thick metal doors.
Projections: 4 3 ⁄8″ extended, 2 1 ⁄2″ depressed.
Stile: 1 3 ⁄4″ minimum.
Fasteners: All mounting screws are concealed.
Finish: P13 Dark Bronze
ANSI: Certified ANSI A156.3 grade 1 standards.
Vertical rods: 7′ standard, extension rod kits available up to 10′
