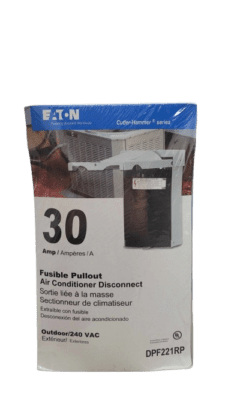

Eaton AC Disconnect 30-Amp 2-Pole Fusible NEMA 3R – DPF221RP

The Eaton Cutler-Hammer 30 Amp 120/240-Volt, 7,200-Watt Fused Air Conditioner Disconnect provides a visible disconnection when performing maintenance. This easy-to-install disconnect is enclosed in a galvanized steel case for reliable outdoor protection. It offers UL and CSA listings and is ANSI certified for safety.

• Provides a safety disconnect between a load center and an air conditioner
• Amperage: 30 Amp
• Rated NEMA 3R for outdoor use
• Galvanized steel enclosure provides outdoor protection
• Voltage rating: 120/240V
• Interrupt rating: 10 kAIC
• Fuse type: Pull-out
• Horsepower: 1.5 hp at 120V, 3 hp at 240V
• Wire size: #14-3 Cu/Al 60°C or 75°C
