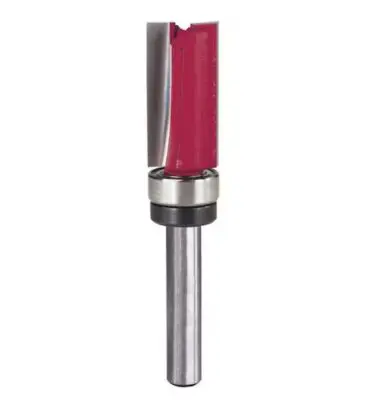

The Diablo 1/2 in. x 1 in. Carbide Top-Bearing Flush Trim Router Bit has an upper bearing that travels along the edge of a template to guide your tool down an identical cutting path. Ideal for making copies of a master workpiece, it provides a controlled, splinter-free trim on all types of wood and laminates. The high-density carbide and titanium composition stands up to repeated use and is designed to produce clean, safe cuts every time.
- Delivers a clean, precise cut ideal for laminates and template work
- High-density carbide body with titanium construction offers a long cutting life
- Tri-metal brazing provides an impact-resistant bond between the carbide and bit
- Kickback-reducing design allows steady operation
- Requires a minimum chuck size of 1/4 in.
- 1/2 in. bit diameter with 1 in. cutting depth
- Great for cutting wood, plywood, melamines and MDF
- Red router bits are a registered trademark of Freud America, Inc.
- Overall diameter = 1/2 in.
- Bearing diameter = 1/2 in.
- Carbide height = 1 in.
- Shank diameter = 1/4 in.
- Overall length = 2-1/2 in.
| Weight | 1 lbs |
|---|---|
| Dimensions | 2 × 3 × 6 in |
| Brand | Diablo |
| MPN | DR50102 |
| UPC |
