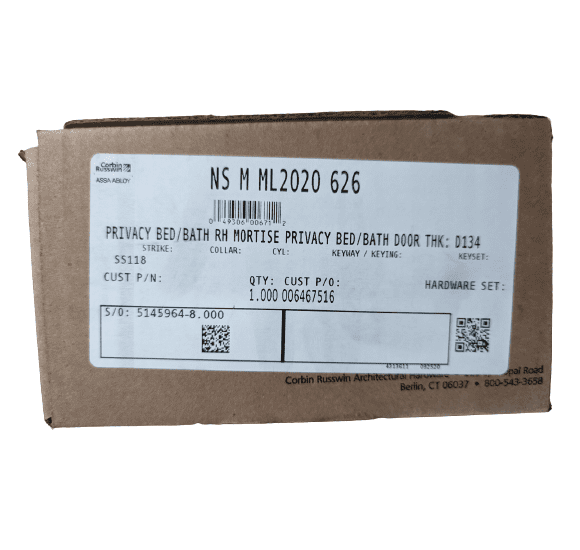

Corbin Russwin ML2000 Series Mortise Lock Set ML2020-NSM-626

Latchbolt by lever either side. Deadbolt by thumbturn inside or by emergency release tool outside

• Escutcheon
• 1-3/4″ door thickness
• 2-3/4″ backset
• Handed; quick reversible. The lockset can be re-handed without disassembling the lock case
• Lockcase is heavy gauge chrome plated steel, 5-7/8″ x 4″ x 15/16”
• Armored front: Wrought brass or bronze, attached by machine screws to lockcase front
• Latchbolt: 2-piece mechanical with anti-friction insert, 5/8″ x 1″ x 3/4″ throw
• One-piece stainless steel deadbolt, 19/32″ x 1-1/4″ x 1″ throw
• ANSI straight lip standard strike, wrought brass or bronze, 4-7/8″ x 1-1/4″ x 1-1/8″ lip to center
• Finish: 626 (Satin Chrome)
