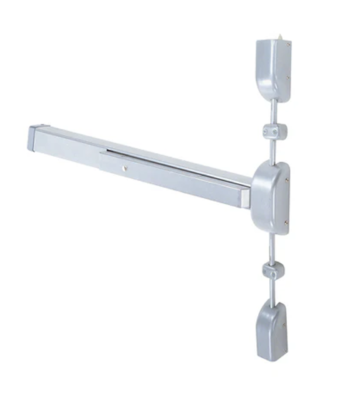

Arrow Lock Arrow S1150 AL 48″ Vertical Rod Wired Exit Device

Arrow’s S1150 Vertical Rod Exit Device offers a reliable and dependable solution at a price you can afford. This exit device is BHMA Grade 1 Certified and ADA compliant.

Specifications

• G – 48″ Device Length
• Chassis and Cover: Non-ferrous alloy
• End caps: Metal
• Doors: 1-3/4″ (44.45mm) thick wood or hollow metal; 3-3/4″ minimum stile for single doors
• Handing: Reversible
• Dogging: Allen-type key standard
• Top/Bottom Bolts/Latchbolt: Brass 1/2″ (12.7mm) throw top, 3/4″ (19.05mm) bottom
• Throughbolts: Order separately
• Rail Assembly: Steel
• Rail Size: Furnished standard for doors up to 36″, can be cut down to accommodate 32″ doors. Alternate rail sizes available for narrow or wide doors
• Rods: 90″–extension kits available
• Finish: AL

Certification & Compliance:
• ANSI/BHMA A156.3, Grade 1
• ANSI A117.1 Accessibility Code
• Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard.
• Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors
• Fire Exit hardware for wood doors, listed up to 1-1/2 hour, B label doors.
• All exit devices comply with life safety code NFPA 101.
• All fire rated devices comply with fire door and window code NFPA80.
