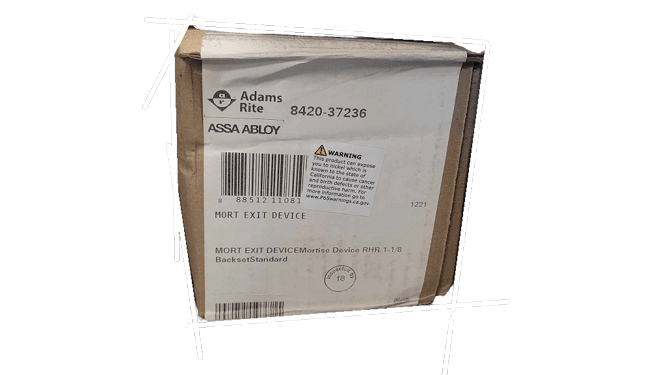

Adams Rite 8420-38236 8400 Series Mortise Exit Device in Dark Bronze
Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
Narrow Stile Mortise Exit Device
Heavy Duty Deadlatching Mechanism
Handing: Device is non-handed. Lever Entry Trim is field reversible.
Strong, Durable Construction for High Level of Security
Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
Easy To Install
Bar Height: Standard model adjusts from 30” to 44”.
Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
