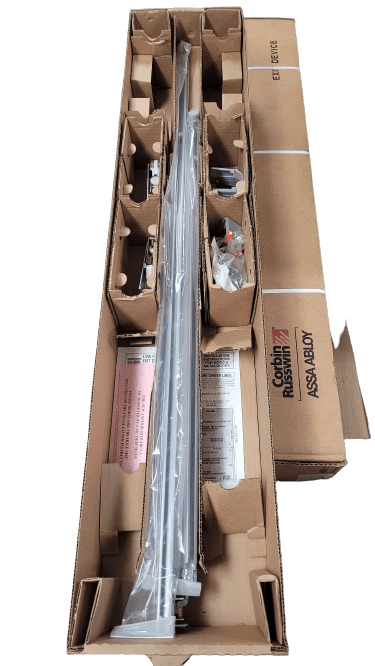

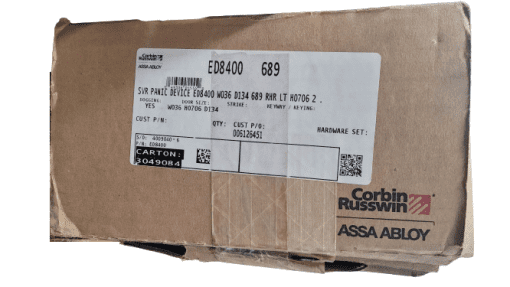

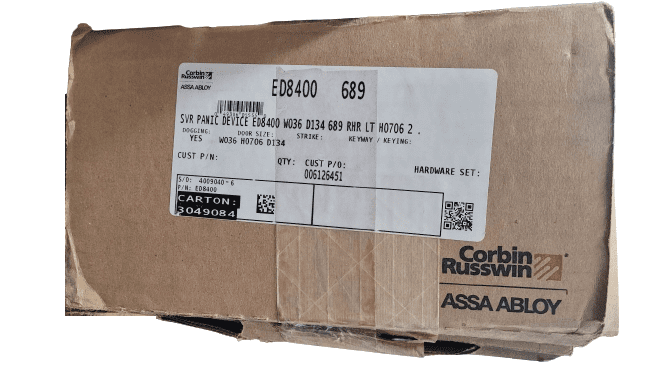

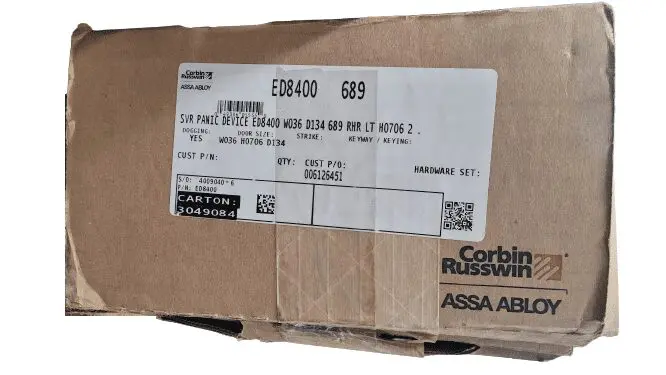

Corbin Russwin ED8400 W036 D134 689 RHR LT H0706 2 Vertical Pushpad Exit Device

Heavy-duty steel construction and Grade 1 performance, priced for outstanding value. Meets rigorous life safety and security requirements, while offering pleasing aesthetics and trouble-free operation.

Color:

• 689 – Silver Painted Aluminum

Backset:

• 2-3/4″ (70mm). Device and trim cover standard ANSI A115.2 (Type 161) cylindrical lock preparation.

Stile:

• Minimum width 5″ (127mm).

Door Height:

•  All top rods easily field cut to size. Standard on ED8400 devices: top rod for 7’6″ door.


Latchbolts

• ED8400 devices: Top: 1/2″ interlocking drop latch. Bottom: 5/8″ pivoted.

Dogging:

• Standard on ED8400 devices: single point 1/4 turn dogging.

Fasteners:

• Standard on ED8400 devices: machine screws and wood door fasteners, Sex nuts and bolts.
