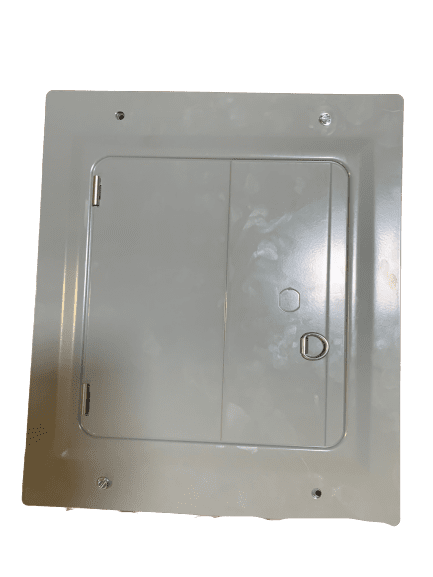

Specially designed for easy installation, Eaton’s BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR816L125FDP is a 125 Amp main lug with 8 spaces and 16 circuits.
- Amperage rating: 125A
- Bus material: aluminum
- Rated NEMA 1 for indoor use
- Interrupt rating: 10 kAIC
- Mounting: flush
- Number of circuits: 16
- Number of spaces: 8
- Phase: single-phase
- Voltage rating: 120/240V
- Wire size: #14-1/0 AWG Cu/Al at 60°C or 75°C
- “Tangential” center knockout easier installation for conduit applications
- Rigid plastic backpan provides solid and reliable breaker mounting—single piece design for stability and durability
- Single keyhole mounting -one keyhole at the top provides easier mounting and leveling
- Drywall marking on enclosure – indicates proper mounting depth for flush applications
- Used with: type BR breakers
Dimensions
Details
| Weight | 10 lbs |
|---|---|
| Dimensions | 15 × 15 × 4 in |
| GTIN | 786676001434 |
| MPN | BR816L125FDP |
